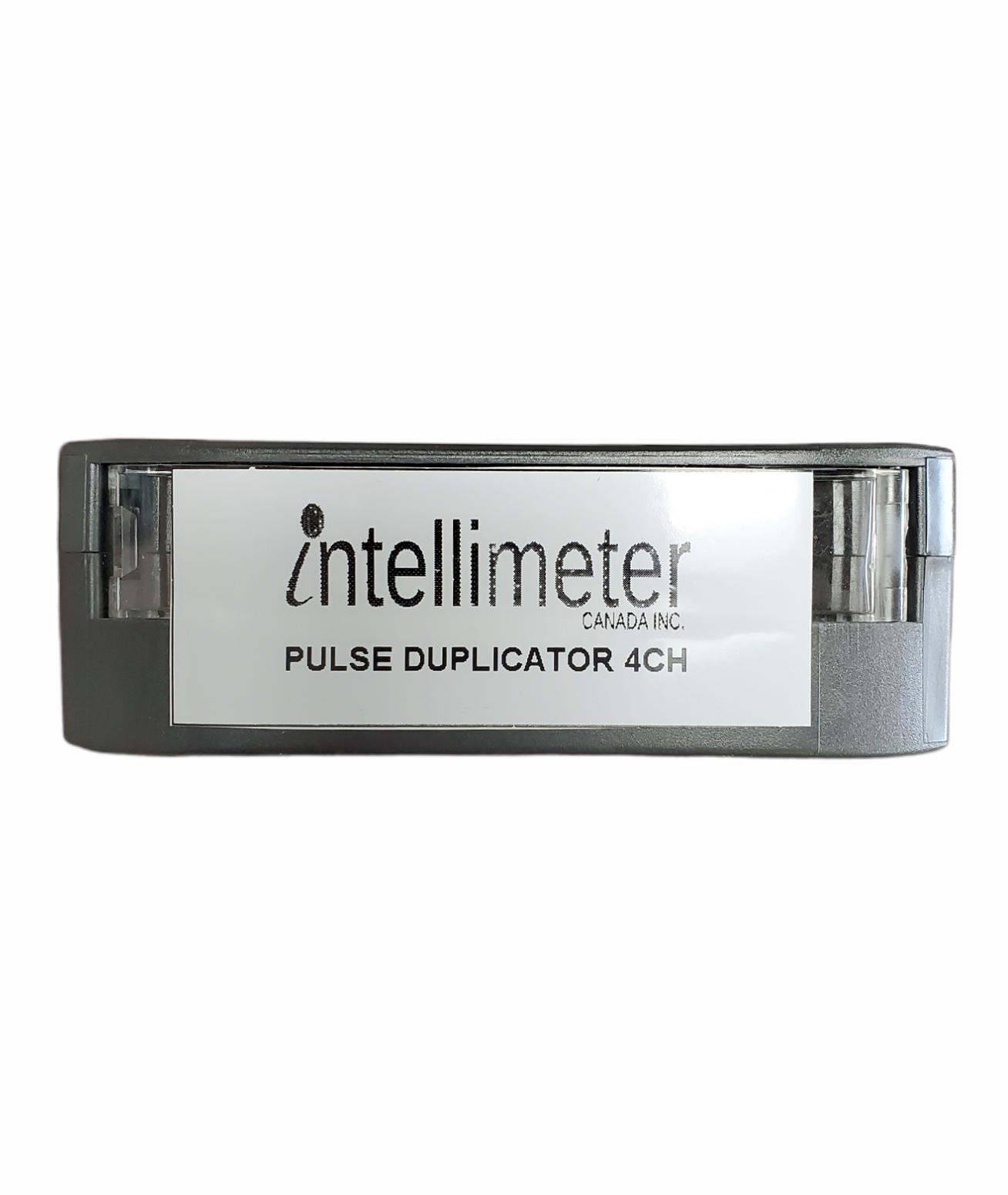

i-meter® Pulse Duplicator
The i-meter® Pulse Duplicator is an ideal addition when two systems need to share the information of a single meter. Whether adding a local counter to an existing remote automated reading system or using two separate counters the i-meter® Pulse Duplicator is a simple and easy to install device to complete the task.
The i-meter® Pulse Duplicator captures pulse outputs from electrical, gas, water, and thermal energy meters, and duplicates each of the inputs. Each duplicator allows four inputs, from a reed switch, dry contact, or open collector, and converts to eight open collector outputs.
The assembly includes a regulated 120 V-AC power supply (12VDC).

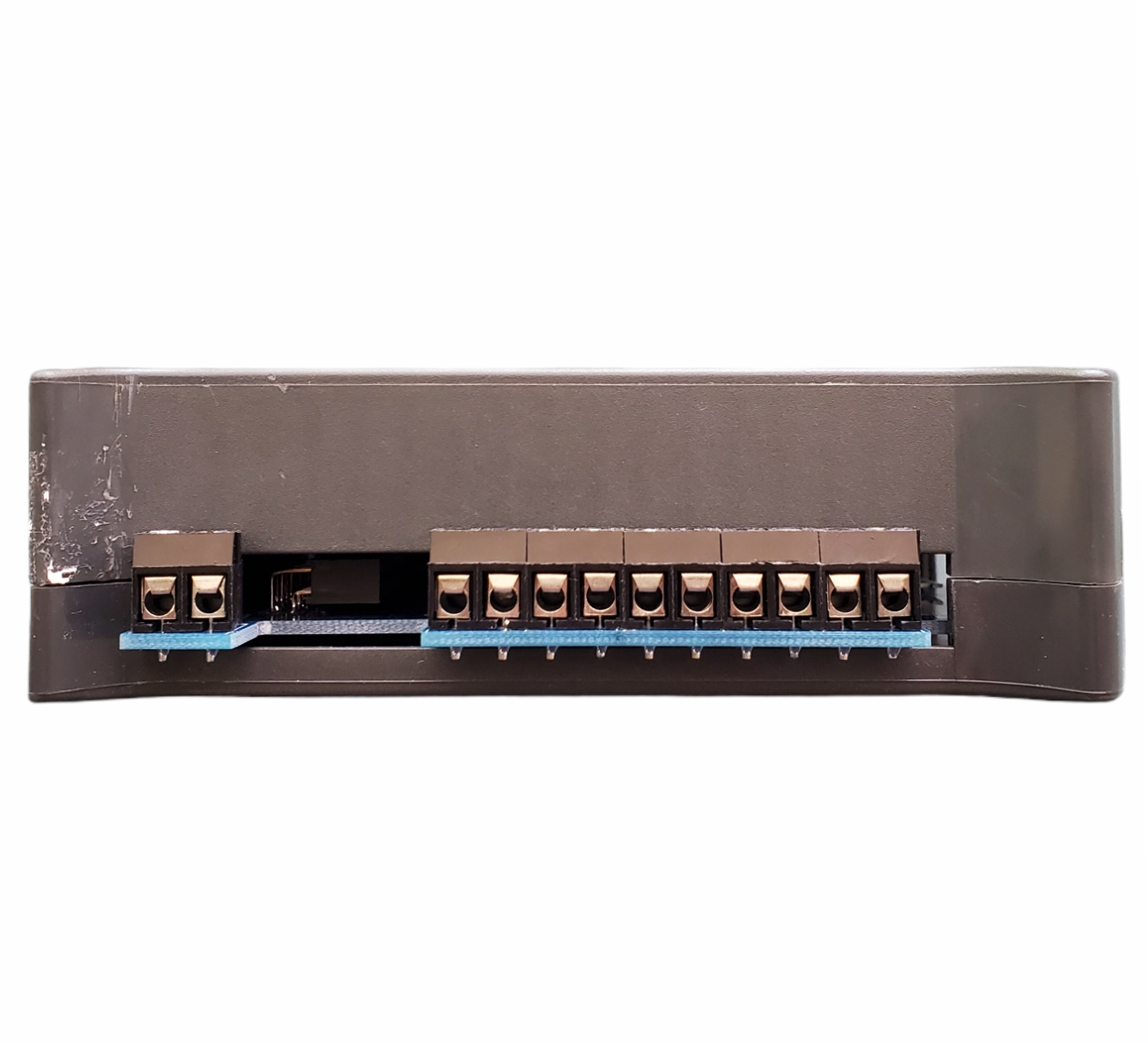

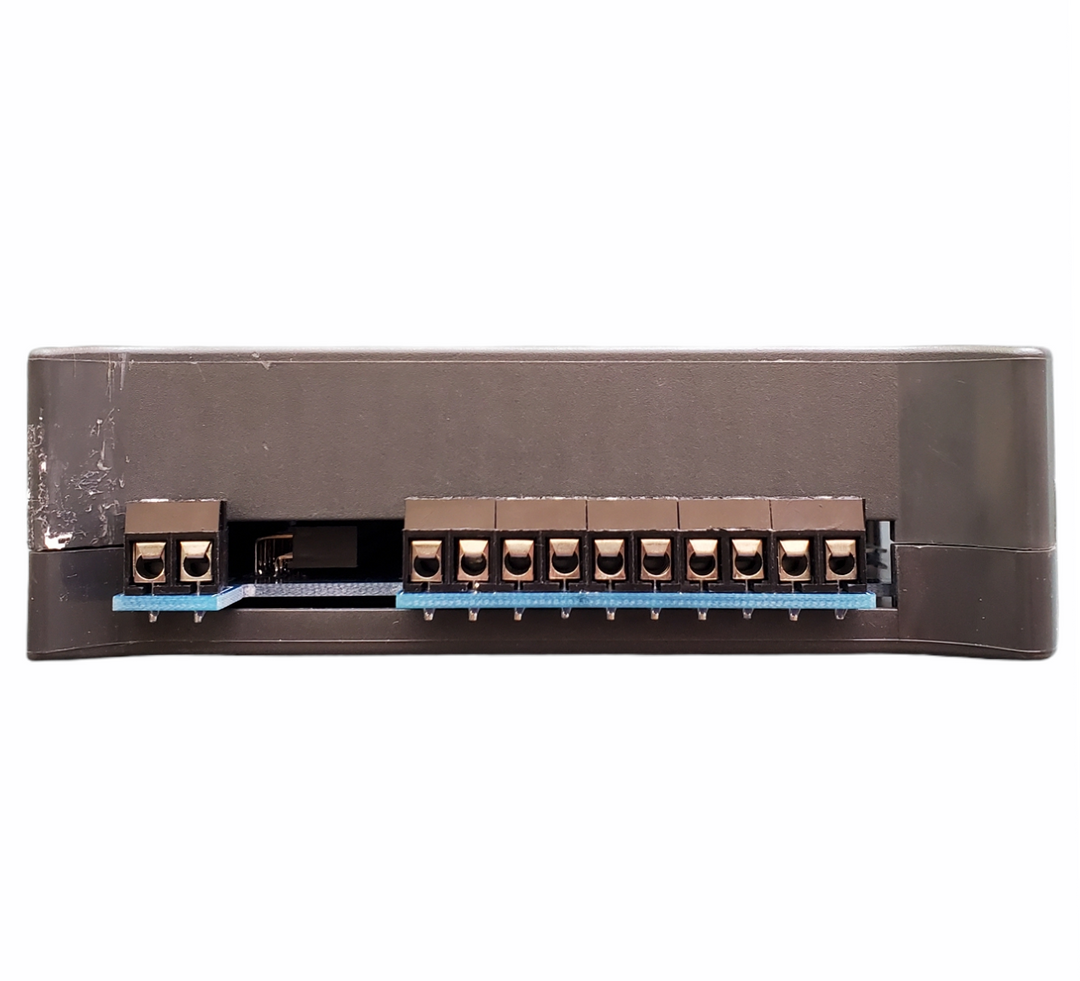

Power input 12 VDC Screw Terminal type
4 digital inputs
Input signal: Relay or Reed switch dry contact- open collector

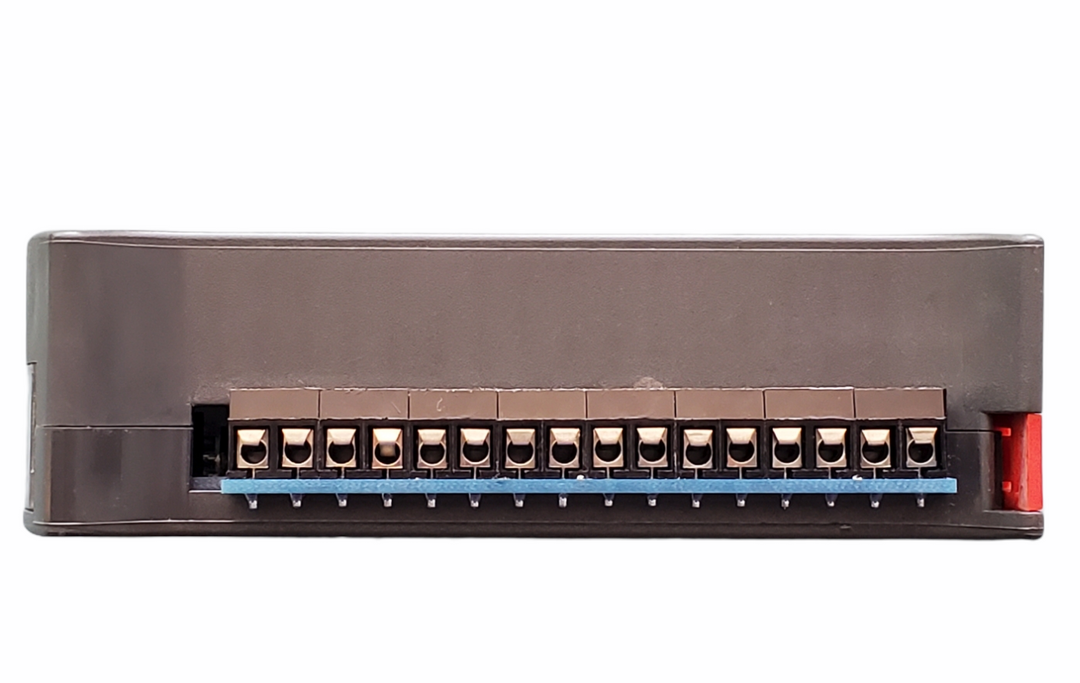

8 digital outputs
Output signal: open collector
Non-Voltage input rating:
- Short Circuit Impedance: 10 KΩ (KOhm) max
- Open Impedance: 500KΩ (KOhm) min.
- Short Circuit Residual Voltage 0.5V
Maximum counting frequency 10 Hz. Minimum time-on 50 mS
Operating Temperature 10oC to +40oC
Humidity 35% to 85% Relative Humidity
